Beschreibung
Graphics Processor
Graphics Card
- Release Date
Oct 8th, 2013
Dec 19th, 2013
- Generation
- Volcanic Islands
(R9 200)
- Predecessor
- Sea Islands
- Successor
- Pirate Islands
- Production
- End-of-life
- Bus Interface
- PCIe 3.0 x16
Clock Speeds
- Base Clock
1000 MHz
1030 MHz (+3%)
- Boost Clock
1050 MHz
1080 MHz (+3%)
- Memory Clock
- 1400 MHz
5.6 Gbps effective
Memory
- Memory Size
- 2 GB
- Memory Type
- GDDR5
- Memory Bus
- 256 bit
- Bandwidth
- 179.2 GB/s
Render Config
- Shading Units
- 1280
- TMUs
- 80
- ROPs
- 32
- Compute Units
- 20
- L1 Cache
- 16 KB (per CU)
- L2 Cache
- 512 KB
Theoretical Performance
- Pixel Rate
33.60 GPixel/s
34.56 GPixel/s
- Texture Rate
84.00 GTexel/s
86.40 GTexel/s
- FP32 (float)
2.688 TFLOPS
2.765 TFLOPS
- FP64 (double)
168.0 GFLOPS
172.8 GFLOPS (1:16)
Board Design
- Slot Width
- Dual-slot
- Length
241 mm
211 mm
9.5 inches
8.3 inches
- TDP
- 180 W
- Suggested PSU
- 450 W

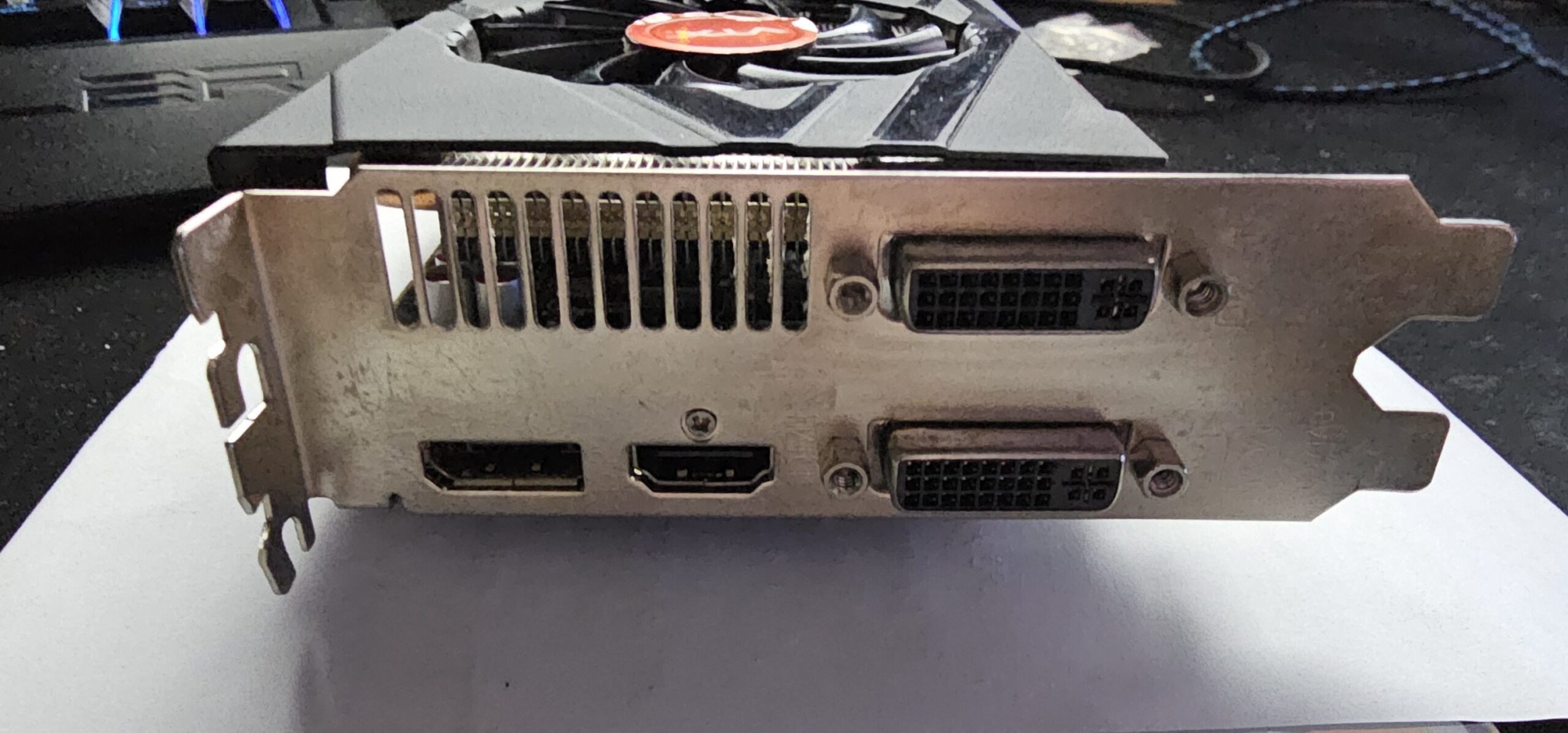

- Outputs
- 2x DVI
1x HDMI 1.4a
1x DisplayPort 1.2
- Power Connectors
- 2x 6-pin
- Board Number
- C631,
109-C63257-00A_02,
109-C63257-12_02
Graphics Features
- DirectX
- 12 (11_1)
- OpenGL
- 4.6
- OpenCL
- 2.1 (1.2)
- Vulkan
- 1.2.170
- Shader Model
- 6.5 (5.1)
