Beschreibung
-
CPU– Support for Socket AM3+ processors
– Support for Socket AM3 processors: AMD Phenom™ II X6 / X4 / X3 / X2 (except 920 / 940) / Athlon II X4 / X3 / X2 / Sempron processors
– Supports 8-Core CPU
– Supports UCC feature (Unlock CPU Core)
– 4 + 1 Power Phase Design
– Supports CPU up to 140W
– Supports AMD’s Cool ‘n’ Quiet Technology
– FSB 2400 MHz (4.8 GT/s)
– Supports Untied Overclocking Technology
– Supports Hyper-Transport 3.0 (HT 3.0) Technology -
Chipsatz– Northbridge: AMD 970
– Southbridge: AMD SB950 -
Arbeitsspeicher– Dual Channel DDR3 memory technology
– 4 x DDR3 DIMM slots
– Supports DDR3 2100(OC) / 1866(OC)* / 1800(OC)* / 1600(OC)* / 1333/1066/800 non-ECC, un-buffered memory
– Max. capacity of system memory: 64GB**1866/1800 / Die Unterstützung von 1600MHz RAM-Takt hängt davon ab, welche AM3/AM3+ CPU Sie einsetzen. Weitere Details zur CPU Spezifikation finden Sie auf der offiziellen AMD Webseite.**Um den maximalen Speicherausbau von 64 Gigabyte zu erreichen, werden RAM-Module mit einer Kapazität von 16 Gigabyte oder mehr benötigt. ASRock wird die Liste für unterstützte Speichermodule ergänzen, sobald entsprechende Riegel auf dem Markt verfügbar sind.
***Aufgrund von Limitierungen im Betriebssystem ist es möglich, dass Windows® 32-bit OS weniger als 4 GB RAM für das System reservieren kann. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
-
BIOS– 32Mb AMI UEFI Legal BIOS with GUI support
– Supports “Plug and Play”
– ACPI 1.1 Compliance Wake Up Events
– Supports jumperfree
– SMBIOS 2.3.1 Support
– CPU, VCCM, NB, SB Voltage Multi-adjustment -
Grafik– n/a
-
Audio– 7.1 CH HD Audio with Schutz von Inhalten (Realtek ALC892 Audio Codec)
– Premium Blu-ray audio support -
LAN– PCIE x1 Gigabit LAN 10/100/1000 Mb/s
– Realtek RTL8111E
– Supports Wake-On-LAN
– Supports LAN Cable Detection
– Supports Energy Efficient Ethernet 802.3az
– Supports PXE -
Steckplätze– 2 x PCI Express 2.0 x16 slots (PCIE2: x16 mode; PCIE3: x4 mode)
– 1 x PCI Express 2.0 x1 slot
– 2 x PCI slots
– Supports AMD Quad CrossFireX™ and CrossFireX™ -
Anschluss– 6 x SATA3 6.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 5 and RAID 10), NCQ, AHCI and Hot Plug functions*
– 1 x IR header
– 1 x CIR header
– 1 x COM port header
– 1 x HDMI_SPDIF header
– 1 x Power LED header
– 2 x CPU Fan connectors (1 x 4-pin, 1 x 3-pin)
– 2 x Chassis Fan connectors (1 x 4-pin, 1 x 3-pin)
– 1 x Power Fan connector (3-pin)
– 24 pin ATX power connector
– 8 pin 12V power connector
– Front panel audio connector
– 3 x USB 2.0 headers (support 6 USB 2.0 ports)*RAID 5 is not supported with Windows® 7 and Widows 10 -

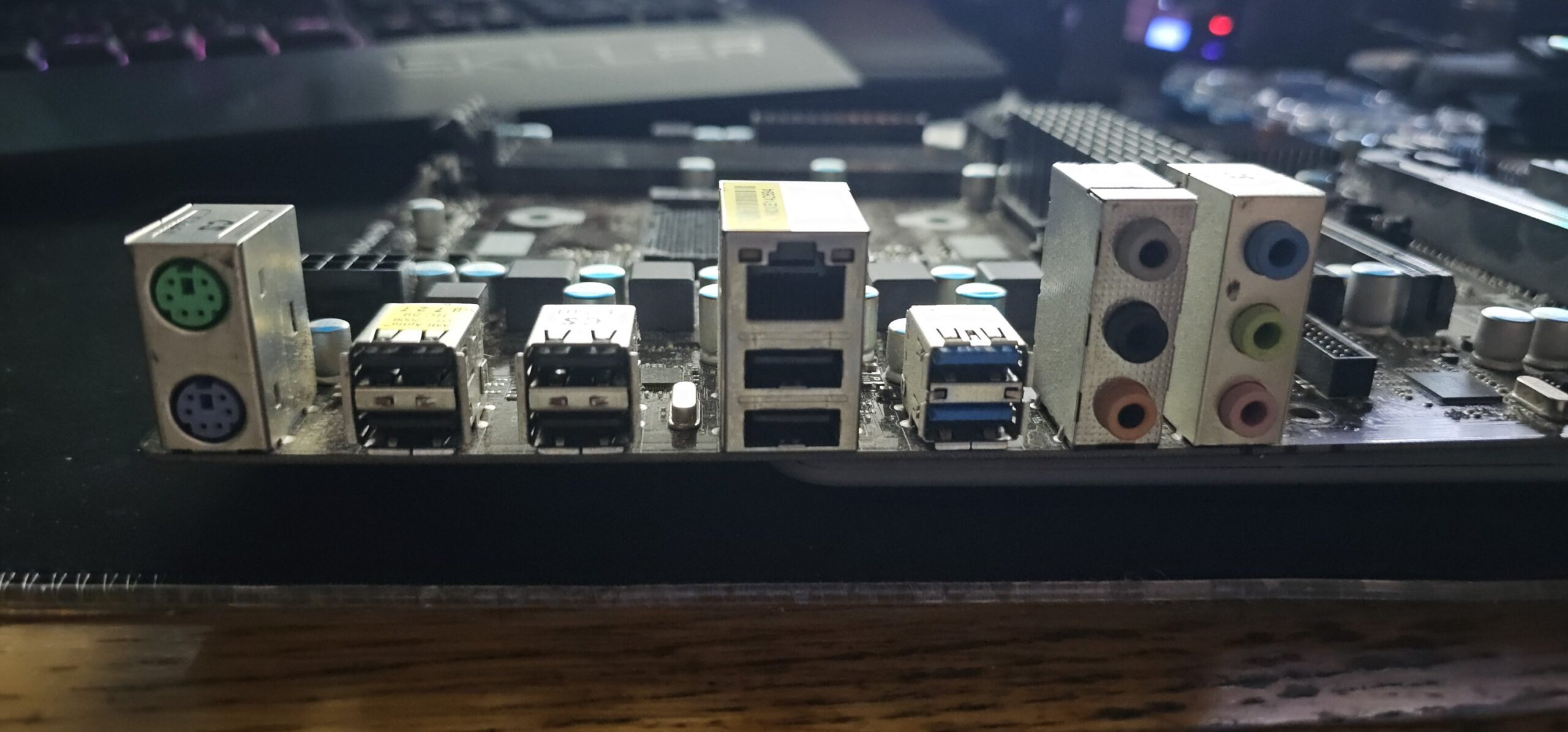

BlendeI/O Panel
– 1 x PS/2 Mouse Port
– 1 x PS/2 Keyboard Port
– 6 x USB 2.0 Ports
– 2 x USB 3.1 Gen1 Ports (Etron EJ168A)
– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
– HD Audio Jack: Side Speaker / Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone -
Einzigartige Features– ASRock Extreme Tuning Utility (AXTU)
– ASRock Instant Boot
– ASRock Sofort-Flash
– ASRock APP Charger
– ASRock XFast USB
– ASRock XFast RAM
– ASRock Crashless BIOS
– ASRock OMG (Online Management Guard)
– ASRock Internet Flash
– ASRock On/Off Play Technology
– Hybrid Booster:
– CPU Frequency Stepless Control
– ASRock U-COP
– Boot Failure Guard (B.F.G.)
– Turbo UCC -
Produktzubehör– I/O Shield
– 2 x SATA Data Cables (Optional) -
Hardware überwachung– CPU Temperature Sensing
– Chassis Temperature Sensing
– CPU, Chassis, Power Fan Tachometer
– CPU, Chassis Quiet Fan
– CPU, Chassis Fan multi-speed control
– Voltage Monitoring: +12V, +5V, +3.3V, Vcore -
Formfaktor– ATX Form Factor: 12.0-in x 8.2-in, 30.5 cm x 20.8 cm
– All Solid Capacitor design -
Betriebssystem– Microsoft® Windows® 10 64-bit / 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit / Vista™ 32-bit / Vista™ 64-bit / XP 32-bit / XP 64-bit
-
Zertifizierungen– FCC, CE
– ErP/EuP Ready (ErP/EuP ready power supply is required)
