ASRock 970M Pro 3

Beschreibung

• Einzigartige Features
  ASRock Super Alloy
  – Sapphire Black PCB
  ASRock Full Spike Protection
  ASRock APP Shop
• CPU
  – Supports Socket AM3+ processors
  – Supports Socket AM3 processors: AMD Phenom™ II X6 / X4 / X3 / X2 (except 920 / 940) / Athlon II X4 / X3 / X2 / Sempron processors
  – Supports 8-Core CPU
  – Supports UCC feature (Unlock CPU Core)
  – 4 + 1 Power Phase design
  – Supports CPU up to 140W
  – Supports AMD’s Cool ‘n’ Quiet Technology
  – FSB 2400 MHz (4.8 GT/s)
  – Supports Untied Overclocking Technology
  – Supports Hyper-Transport 3.0 (HT 3.0) Technology
• Chipsatz
  – Northbridge: AMD 970
  – Southbridge: AMD SB950
• Arbeitsspeicher
  – Dual Channel DDR3 Memory Technology
  – 4 x DDR3 DIMM Slots
  – Supports DDR3 2400+(OC) / 2100(OC) / 1866(OC) / 1800(OC) / 1600(OC) / 1333/1066 non-ECC, un-buffered memory
  – Max. capacity of system memory: 64GB*
  – Supports Intel^® Extreme Speicherprofile (XMP) 1.3 / 1.2
  – Supports AMD Memory Profile Technology (AMP) up to AMP 2400

  *Aufgrund von Limitierungen im Betriebssystem ist es möglich, dass Windows^® 32-bit OS weniger als 4 GB RAM für das System reservieren kann. For Windows^® 64-bit OS with 64-bit CPU, there is no such limitation.
• BIOS
  – 32Mb AMI UEFI Legal BIOS with GUI support
  – Supports “Plug and Play”
  – ACPI 1.1 Compliant wake up events
  – Supports jumperfree
  – SMBIOS 2.3.1 support
  – CPU, VCCM, NB Voltage multi-adjustment
• Grafik
  – n/a
• Audio
  – 7.1 CH HD Audio with Schutz von Inhalten (Realtek ALC892 Audio Codec)
  – Premium Blu-ray Audio support
  – Supports Surge Protection (ASRock Full Spike Protection)
  – ELNA Audio Caps

  *Um 7.1 CH HD Audio zu konfigurieren, ist es notwendig ein HD-Frontpanel-Modul zu verwenden und das Multi-Channel-Audio-Feature im Soundtreiber zu aktivieren.
• LAN
  – PCIE x1 Gigabit LAN 10/100/1000 Mb/s
  – Realtek RTL8111E
  – Supports Wake-On-LAN
  – Supports Lightning/ESD Protection (ASRock Full Spike Protection)
  – Supports LAN Cable Detection
  – Supports Energy Efficient Ethernet 802.3az
  – Supports PXE
• Steckplätze
  – 2 x PCI Express 2.0 x16 Slots (PCIE2: x16 mode; PCIE3: x4 mode)
  – 1 x PCI Express 2.0 x1 Slot
  – 1 x PCI Slot
  – Supports AMD Quad CrossFireX™ and CrossFireX™
• Speicherplatz
  – 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5 and RAID 10), NCQ, AHCI and Hot Plug*

  *RAID 5 is not supported with Windows^® 7 and Widows 10
• Anschluss
  – 1 x IR Header
  – 1 x TPM Header
  – 1 x Power LED Header
  – 1 x CPU Fan Connector (4-pin)
  – 1 x Chassis Fan Connector (4-pin)
  – 1 x Power Fan Connector (3-pin)
  – 1 x 24 pin ATX Power Connector
  – 1 x 8 pin 12V Power Connector
  – 1 x Front Panel Audio Connector
  – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
  – 1 x USB 3.1 Gen1 Header by Etron EJ188H (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection (ASRock Full Spike Protection))

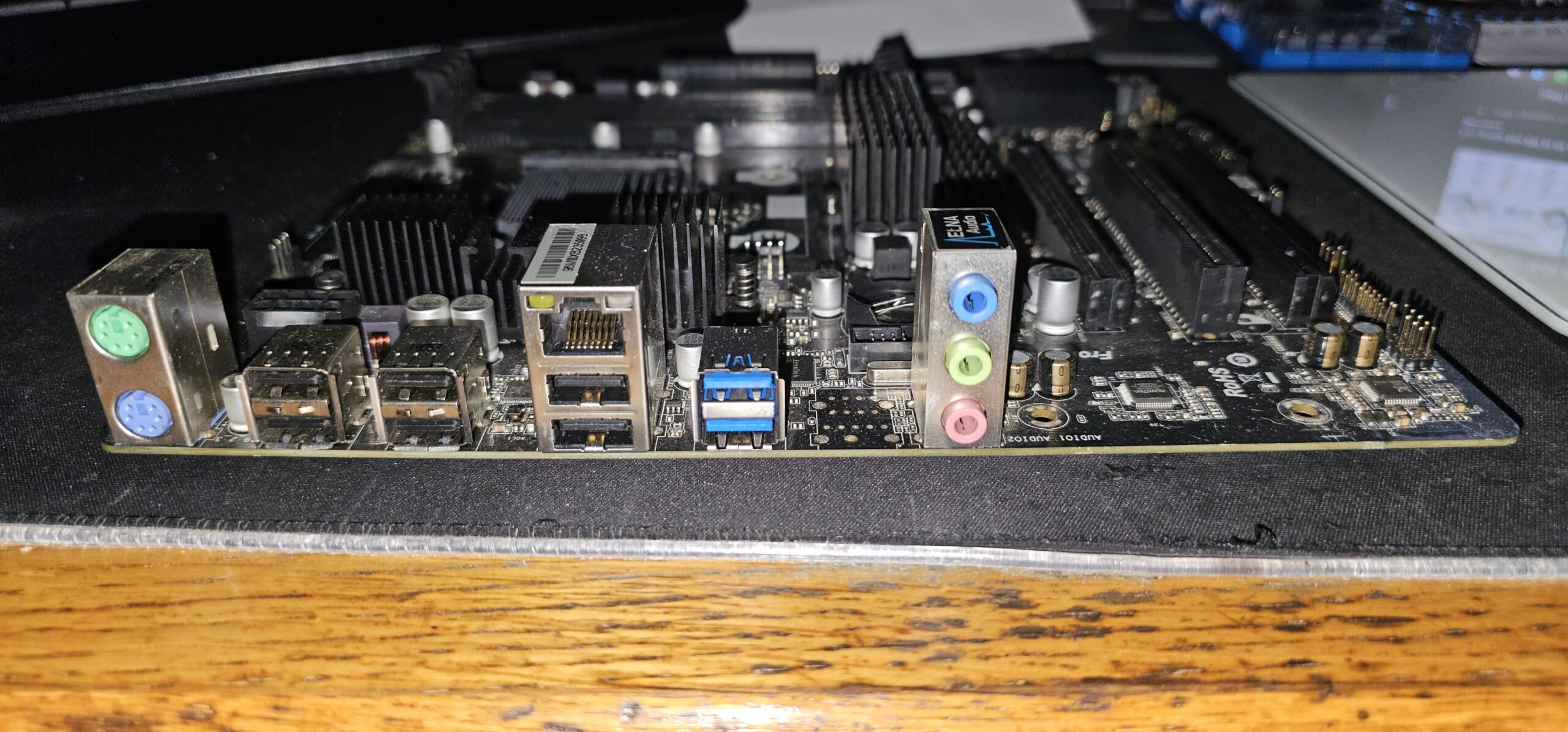

• Blende
  – 1 x PS/2 Mouse Port
  – 1 x PS/2 Keyboard Port
  – 6 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
  – 2 x USB 3.1 Gen1 Ports (Etron EJ188H) (Supports ESD Protection (ASRock Full Spike Protection))
  – 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
  – HD Audio Jacks: Line in / Front Speaker / Microphone
• Software und UEFI
  Software
  – ASRock Extreme Tuning Utility (AXTU)
  – ASRock APP Charger
  – ASRock XFast RAM
  – ASRock Restart to UEFI
  – ASRock X-Boost
  UEFI
  – ASRock Instant Boot
  – ASRock Sofort-Flash
  – ASRock Internet Flash
  – ASRock Crashless BIOS
  – ASRock OMG (Online Management Guard)
  – ASRock UEFI System Browser
  – ASRock UEFI Tech Service
  – ASRock Dehumidifier Function
  – ASRock Easy RAID Installer
  – ASRock Easy Driver Installer
  – Turbo 50 / Turbo 60 Overclocking
• Produktzubehör
  – I/O Shield
  – 2 x SATA Data Cables
• Hardware überwachung
  – CPU, Chassis temperature sensing
  – CPU, Chassis, Power Fan Tachometer
  – CPU, Chassis Quiet Fan (Auto adjust fan speed by CPU temperature)
  – CPU, Chassis Fan multi-speed control
  – Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore Voltage
• Formfaktor
  – Micro ATX Form Factor
  – Solid Capacitor design
  – High Density Glass Fabric PCB
• Betriebssystem
  – Microsoft^® Windows^® 10 64-bit / 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit / Vista™ 32-bit / Vista™ 64-bit / XP 32-bit / XP 64-bit
• Zertifizierungen
  – FCC, CE
  – ErP/EuP ready (ErP/EuP ready power supply is required)
